Die Sinker EDM_S500 CMAX

EDM Machine

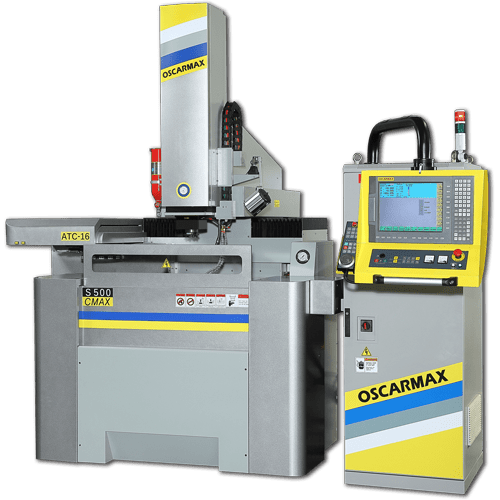

S500 CMAX is Advanced CNC type of sinker EDM machines. It features with 3D Mode motion machining. The oil tank capacity is up to 850 liter. The 6 axes are controllable with C, A, B axes which are optional electrode head. Moreover, it can be connected with robot hand, allow to change the electrodes by the robot hand. The machine body is made by casting, where can be load up to 2300kg. The work table is 850 x 450mm, mostly being used in production of automobile industry.

EDM Machine


Standard Accessories

  1. 15" LCD Screen
  2. Auto Fire Extinguisher
  3. Halogen Work Lamp
  4. Clamping Plate
  5. Leveling Pad
  6. Flushing Nozzle
  7. Patented Electrode Holder
  8. Paper Filter
  9. Drill Chuck
  10. Tool Box
  11. Remote Controller
  12. M.P.G.
  13. Signal Tower Light
