Schrack Relay Module

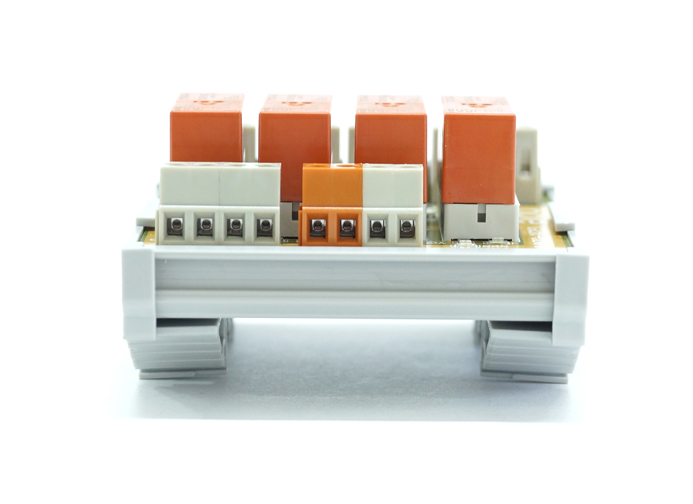

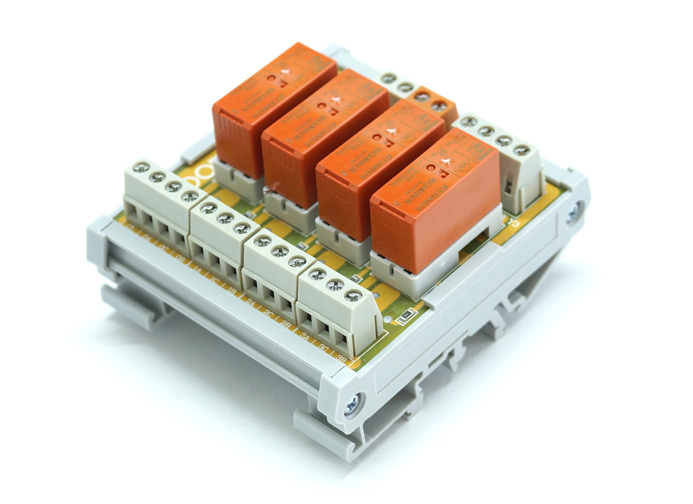

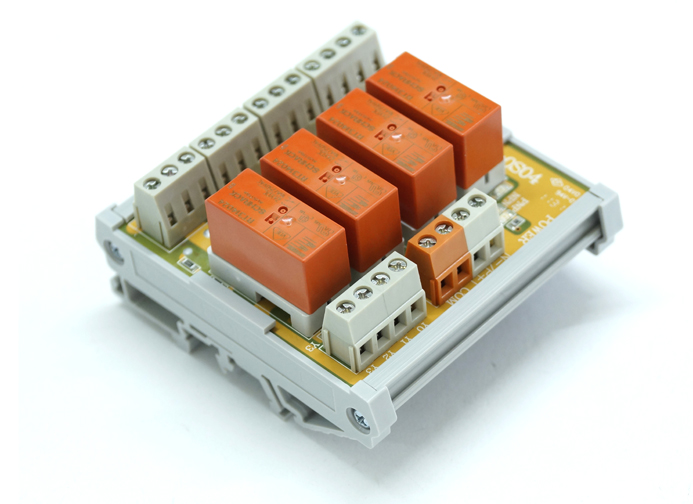

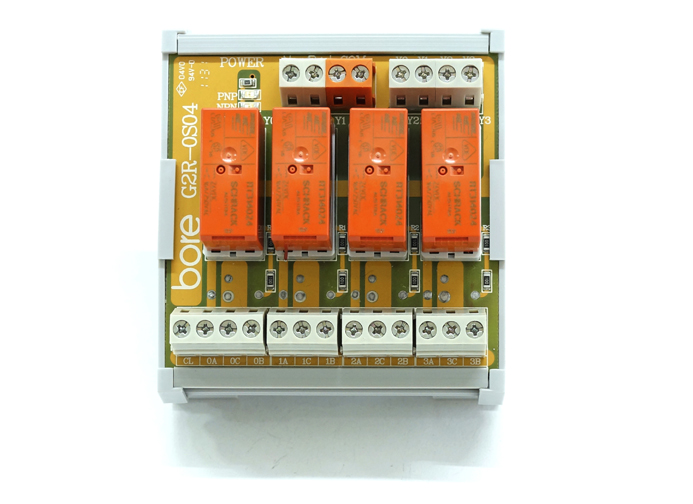

G2R-OS04-SR
G2R-OS-SR

G2R-OS-SR Series

1c contact configuration (SPDT)
3-pin detached PCB terminal block (output end)
for matching with FRC connector (IDC)

Specification

Item Specification
Contact configuration : 1c
Pole type : 1 pole
Terminal block type : PCB terminal block
Relay type : Shrack RT 314024
LED power status indicator : Green light
LED motion status indicator : Red light
Contact max. rated current : 16A
Contact max. rated voltage : 250 VAC
Dielectric strength (between coil and contact) : 5000 VAC, for 1min.
Dielectric strength (between the same polarity) : 1000 VAC, for 1 min.
Machenical durability : AC coil: 10,000,000 operations min. DC coil: 30,000,000 operations min.
