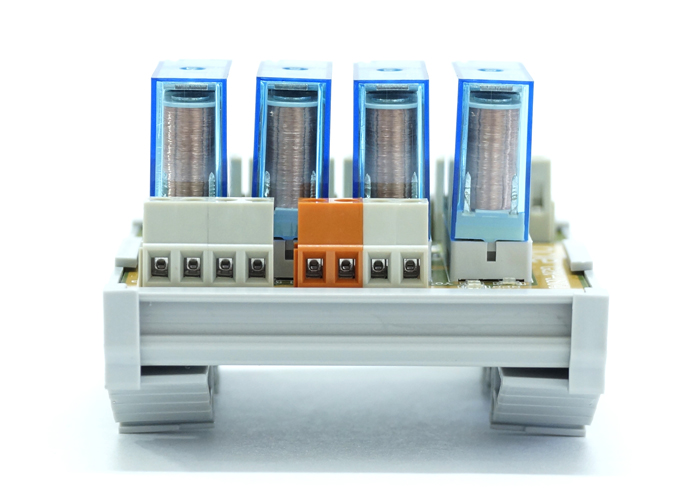

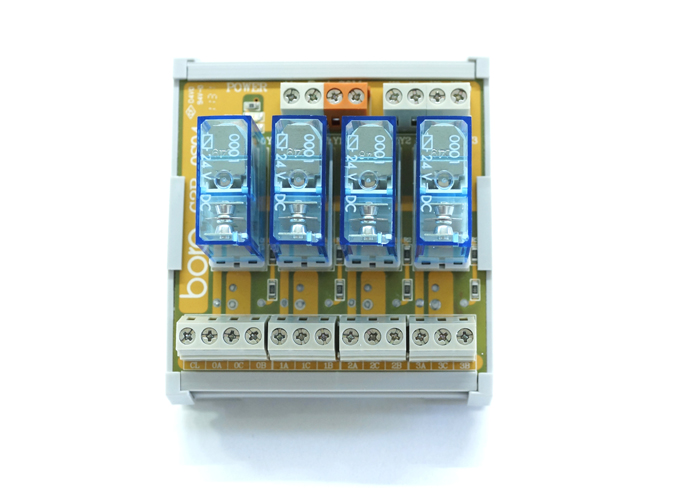

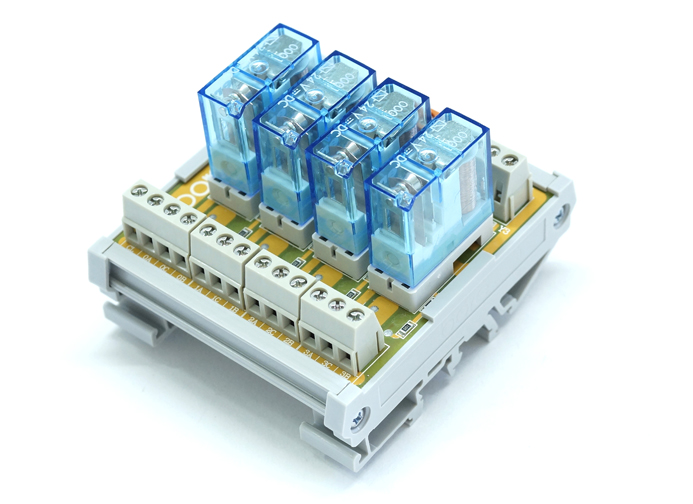

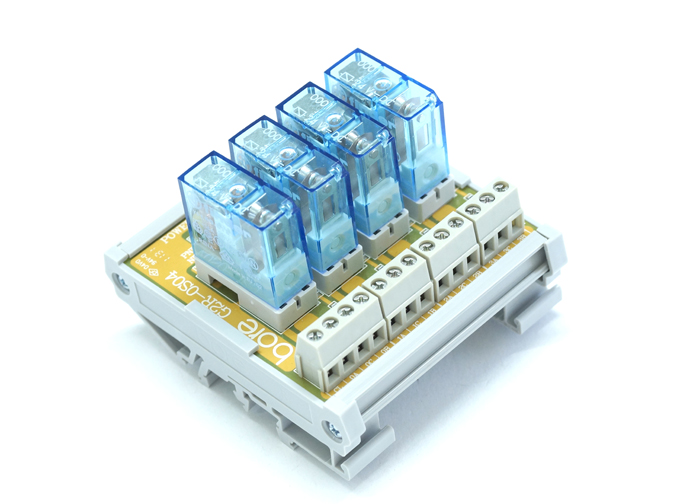

G2R-OS04-FD
G2R-OS-FD
G2R-OS-FD Series
1c contact configuration (SPDT)
3-pin detached PCB terminal block (output end)
for matching with FRC connector (IDC)
Specification
| Item | Specification |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | PCB terminal block |

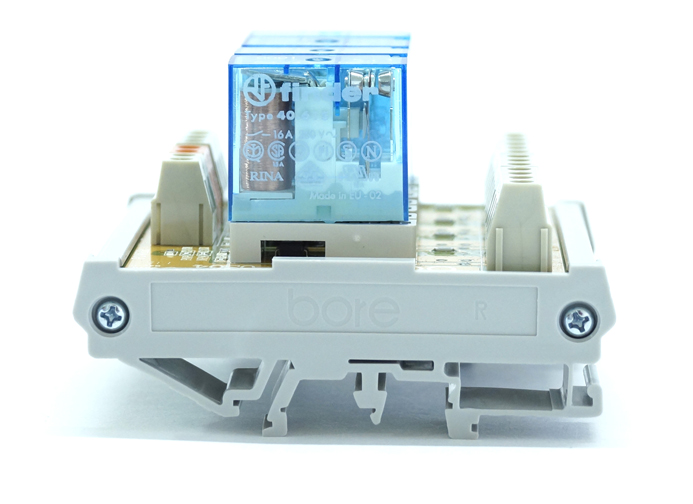

| Relay type : | Finder 40.61.7.024.0000 |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Resistive load : | 5A 250VAC, 5A 30VDC |
| Contact max. rated current : | 16A |
| Contact max. rated voltage : | 250 VAC |
| Dielectric strength (between coil and contact) : | 8mm. 6kV (1.2/50 µs) isolation |
| Dielectric strength (between the same polarity) : | VAC 1000 50/60 Hz 1min. |
| Machenical durability : | AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min. |
| Electrical durability : | 150,000 operations min. (at rated load AC1) |
