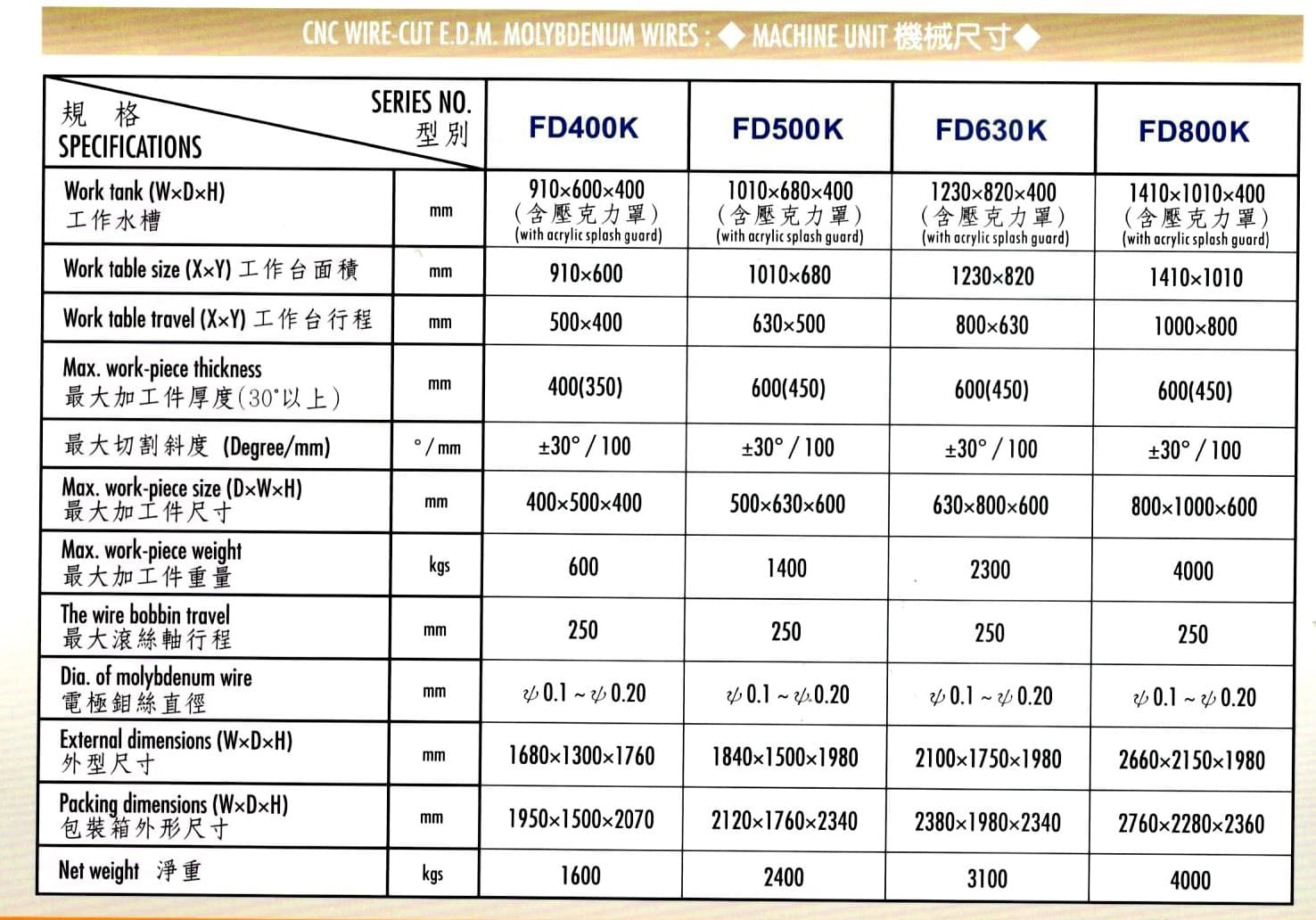

5 Axis - CNC Wire-Cut E.D.M. Modenumlyb Wires series
FD Large Taper Series
WIDCS is managed by AC Servo system.
Without Roller guides and wire Guides Ra ≦1.2um is attainable for
continuous 30000 mm2 machining area at 60° taper by skim cuts.
By skim cuts,0.02mm profile accuracy can be reached for 30° oblique
cavity on a 200mm thickness part.
profile tolerance of octagonal punch(side to side,every60° )≦0.03mm.
