Specification
| Model | GPL-300 | GPL-600 | |
|---|---|---|---|
| Magnetic base | Capacity | 300 kg | 600 kg |
| Packing dimensions | 22 cm x 13 cm x 16 cm | 30 cm x 16 cm x 16 cm | |
| Model for machine | GT-10VM,GT-12VM,GT-16VM GT-10VM II,GT-12VM II,GT-16VM II GT-10VS,GT-12VS,GT-16VS |
GT-10VL,GT-12VL,GT-16VL GT-10VL II,GT-12VL II, GT-16VL II |
|

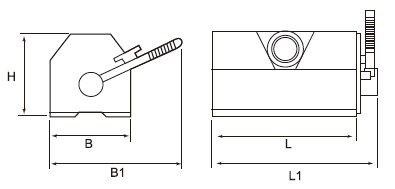

| Chucking face | B | 93 | 122 |
| L | 165 | 236 | |
| Dimensions | H | 96 | 120 |
| B1 | 210 | 303 | |
| L1 | 185 | 265 | |
| Steel Plate | Max. Lifting capacity | 300 kg | 600 kg |
| Min. thickness required | 25 mm | 30 mm | |
| Not hollow round steel | Max. Lifting capacity | 135 kg | 270 kg |
| Max. diameter | 250 mm | 350 mm | |
| Max. length | 1500 mm | 2000 mm | |
| Safety cofficient | X 3.5 | X 3.5 | |
| Weight | 11 kg | 26 kg | |
※ Pay attention to the minimum thickness required while using "Portable permanent Magnetic Base"
