www.hdtools.com.tw產品介紹
規格數據
單位：mm(Unit：mm)
|

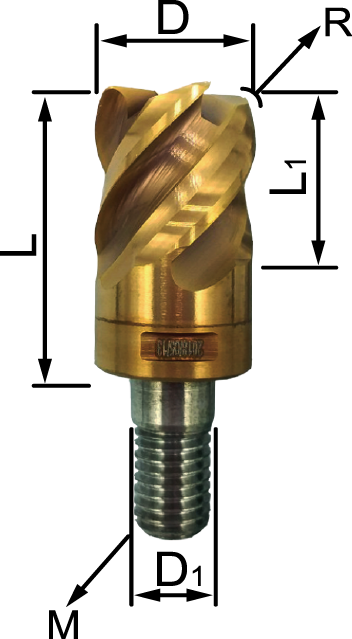

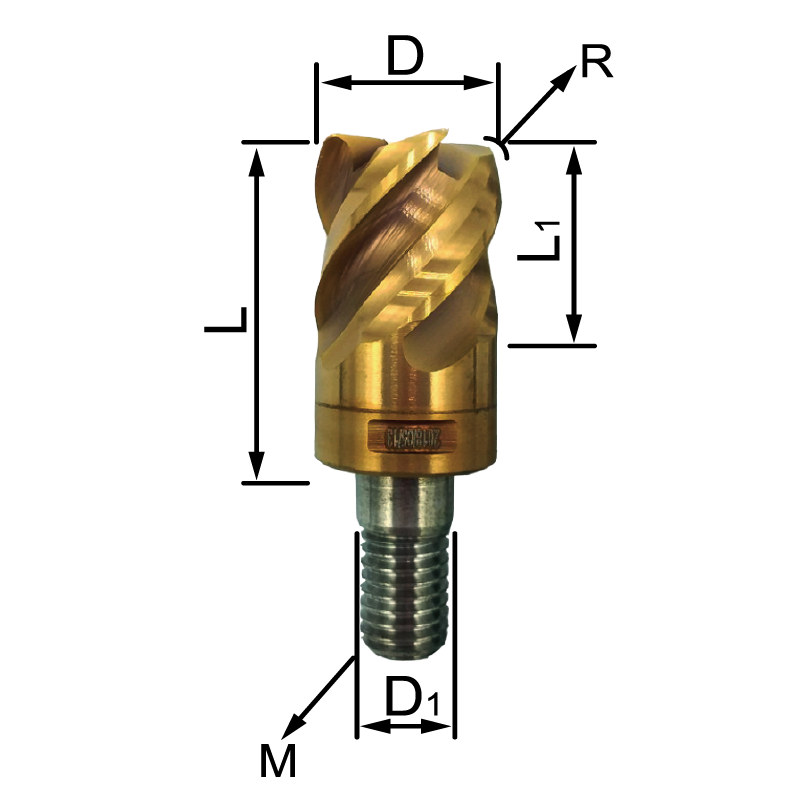

產品編號 Model No. |
D直徑xＲ角 DiaxComer |
L1刃長 Flute-Length |
L刀頭全長 Overall Length |
D1支撐位頸徑 Neck Dia |
M連接螺紋 Tread Size |
備註 |
|
HESR 080054TX |
8 x 0.5R |
8 |
17 |
5.5 |
M05 |
|
| HESR 080104TX | 8 x 1R | 8 | 17 | 5.5 |
M05 |
|
| HESR 100054TX | 10 x 0.5R | 10 | 21 | 5.5 |
M05 |
|
| HESR 100104TX | 10 x 1R | 10 | 21 | 5.5 |
M05 |
|
| HESR 100204TX | 10 x 2R | 10 | 21 | 5.5 |
M05 |
|
| HESR 120054TX | 12 x 0.5R | 12 | 25.5 | 6.5 |
M06 |
|
| HESR 120104TX | 12 x 1R | 12 | 25.5 | 6.5 |
M06 |
|
| HESR 120204TX | 12 x 2R | 12 | 25.5 | 6.5 |
M06 |
|
| HESR 160104TX | 16 x 1R | 16 | 30 | 8.5 |
M08 |
|
| HESR 160204TX | 16 x 2R | 16 | 30 | 8.5 |
M08 |
|
| HESR 200104TX | 20 x 1R | 20 | 38 | 10.5 |
M10 |
|
| HESR 200204TX | 20 x 2R | 20 | 38 | 10.5 |
M10 |
|
| HESR 200304TX | 20 x 3R | 20 | 38 | 10.5 |
M10 |
|
| HESR 250104TX | 25 x 1R | 25 | 42 | 12.5 |
M12 |
|
| HESR 250204TX | 25 x 2R | 25 | 42 | 12.5 |
M12 |
|
| HESR 250304TX | 25 x 3R | 25 | 42 | 12.5 |
M12 |
