固定銷／定位銷
定位銷(材質:鋼、不銹鋼)(錐面)
22630
固定銷又稱定位銷，主要作用在兩零件之間緊固的螺絲間，保證位置準確性。
基本形式是圓柱銷(直銷)和圓錐銷(斜銷)區別如下
圓柱銷(直銷):1.可預加工。2.精確定位。3.抗剪作用。
利用微小過盈固定在鉸制孔中，可以承受不大的載荷。為保證定位精度和聯接的緊固性,不適合經常拆卸。
主要用於定位，也用作聯接銷和安全銷。
圓錐銷(斜銷):1.通常配合。2.經常拆卸。3.快速定位。
具有1：50的錐度，自鎖性好，定位精度高，安裝方便，多次裝拆對定位精度的影響較小。
主要用於定位,也可用作聯接銷,銷孔需鉸制。
規格數據

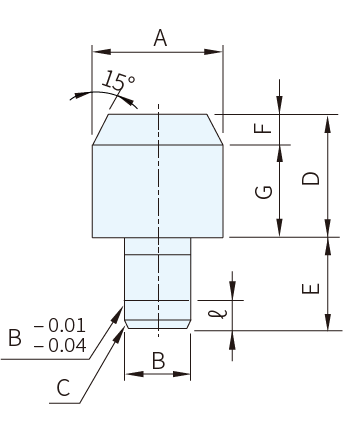

| 尺寸圖/Dimensional drawing |
 |
|
品號
Product No.
|
TYPE
|
材質
material
|
硬度(HRC)
hardness
|
B
|
A
|
E
|
D
|
C
|
F
|
ℓ
|
G
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22630.23-1-2 | 22630.23 | SUJ2 | 58~62 | 1 | 2 | 3 | 3.5 | 0.1 | 0.5 | 0 | 3 |
| 22630.23-2-3 | 22630.23 | SUJ2 | 58~62 | 2 | 3 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.23-2-4 | 22630.23 | SUJ2 | 58~62 | 2 | 4 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.23-3-4 | 22630.23 | SUJ2 | 58~62 | 3 | 4 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.23-3-5 | 22630.23 | SUJ2 | 58~62 | 3 | 5 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.23-3-6 | 22630.23 | SUJ2 | 58~62 | 3 | 6 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.23-4-5 | 22630.23 | SUJ2 | 58~62 | 4 | 5 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.23-4-6 | 22630.23 | SUJ2 | 58~62 | 4 | 6 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.23-5-6 | 22630.23 | SUJ2 | 58~62 | 5 | 6 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.23-5-8 | 22630.23 | SUJ2 | 58~62 | 5 | 8 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.23-6-8 | 22630.23 | SUJ2 | 58~62 | 6 | 8 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.23-6-10 | 22630.23 | SUJ2 | 58~62 | 6 | 10 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.23-8-10 | 22630.23 | SUJ2 | 58~62 | 8 | 10 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.23-8-12 | 22630.23 | SUJ2 | 58~62 | 8 | 12 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.23-8-13 | 22630.23 | SUJ2 | 58~62 | 8 | 13 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.23-10-12 | 22630.23 | SUJ2 | 58~62 | 10 | 12 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-10-13 | 22630.23 | SUJ2 | 58~62 | 10 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-10-15 | 22630.23 | SUJ2 | 58~62 | 10 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-12-13 | 22630.23 | SUJ2 | 58~62 | 12 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-12-15 | 22630.23 | SUJ2 | 58~62 | 12 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-12-16 | 22630.23 | SUJ2 | 58~62 | 12 | 16 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.23-13-15 | 22630.23 | SUJ2 | 58~62 | 13 | 15 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.23-13-16 | 22630.23 | SUJ2 | 58~62 | 13 | 16 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.23-16-20 | 22630.23 | SUJ2 | 58~62 | 16 | 20 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.23-16-25 | 22630.23 | SUJ2 | 58~62 | 16 | 25 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.23-20-25 | 22630.23 | SUJ2 | 58~62 | 20 | 25 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.23-20-30 | 22630.23 | SUJ2 | 58~62 | 20 | 30 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.24-1-2 | 22630.24 | SUJ2 | - | 1 | 2 | 3 | 3.5 | 0.1 | 0.5 | 0 | 3 |
| 22630.24-2-3 | 22630.24 | SUJ2 | - | 2 | 3 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.24-2-4 | 22630.24 | SUJ2 | - | 2 | 4 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.24-3-4 | 22630.24 | SUJ2 | - | 3 | 4 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.24-3-5 | 22630.24 | SUJ2 | - | 3 | 5 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.24-3-6 | 22630.24 | SUJ2 | - | 3 | 6 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.24-4-5 | 22630.24 | SUJ2 | - | 4 | 5 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.24-4-6 | 22630.24 | SUJ2 | - | 4 | 6 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.24-5-6 | 22630.24 | SUJ2 | - | 5 | 6 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.24-5-8 | 22630.24 | SUJ2 | - | 5 | 8 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.24-6-8 | 22630.24 | SUJ2 | - | 6 | 8 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.24-6-10 | 22630.24 | SUJ2 | - | 6 | 10 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.24-8-10 | 22630.24 | SUJ2 | - | 8 | 10 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.24-8-12 | 22630.24 | SUJ2 | - | 8 | 12 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.24-8-13 | 22630.24 | SUJ2 | - | 8 | 13 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.24-10-12 | 22630.24 | SUJ2 | - | 10 | 12 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-10-13 | 22630.24 | SUJ2 | - | 10 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-10-15 | 22630.24 | SUJ2 | - | 10 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-12-13 | 22630.24 | SUJ2 | - | 12 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-12-15 | 22630.24 | SUJ2 | - | 12 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-12-16 | 22630.24 | SUJ2 | - | 12 | 16 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.24-13-15 | 22630.24 | SUJ2 | - | 13 | 15 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.24-13-16 | 22630.24 | SUJ2 | - | 13 | 16 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.24-16-20 | 22630.24 | SUJ2 | - | 16 | 20 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.24-16-25 | 22630.24 | SUJ2 | - | 16 | 25 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.24-20-25 | 22630.24 | SUJ2 | - | 20 | 25 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.24-20-30 | 22630.24 | SUJ2 | - | 20 | 30 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.25-1-2 | 22630.25 | SUS304 | - | 1 | 2 | 3 | 3.5 | 0.1 | 0.5 | 0 | 3 |
| 22630.25-2-3 | 22630.25 | SUS304 | - | 2 | 3 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.25-2-4 | 22630.25 | SUS304 | - | 2 | 4 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.25-3-4 | 22630.25 | SUS304 | - | 3 | 4 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.25-3-5 | 22630.25 | SUS304 | - | 3 | 5 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.25-3-6 | 22630.25 | SUS304 | - | 3 | 6 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.25-4-5 | 22630.25 | SUS304 | - | 4 | 5 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.25-4-6 | 22630.25 | SUS304 | - | 4 | 6 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.25-5-6 | 22630.25 | SUS304 | - | 5 | 6 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.25-5-8 | 22630.25 | SUS304 | - | 5 | 8 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.25-6-8 | 22630.25 | SUS304 | - | 6 | 8 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.25-6-10 | 22630.25 | SUS304 | - | 6 | 10 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.25-8-10 | 22630.25 | SUS304 | - | 8 | 10 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.25-8-12 | 22630.25 | SUS304 | - | 8 | 12 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.25-8-13 | 22630.25 | SUS304 | - | 8 | 13 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.25-10-12 | 22630.25 | SUS304 | - | 10 | 12 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-10-13 | 22630.25 | SUS304 | - | 10 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-10-15 | 22630.25 | SUS304 | - | 10 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-12-13 | 22630.25 | SUS304 | - | 12 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-12-15 | 22630.25 | SUS304 | - | 12 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-12-16 | 22630.25 | SUS304 | - | 12 | 16 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.25-13-15 | 22630.25 | SUS304 | - | 13 | 15 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.25-13-16 | 22630.25 | SUS304 | - | 13 | 16 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.25-16-20 | 22630.25 | SUS304 | - | 16 | 20 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.25-16-25 | 22630.25 | SUS304 | - | 16 | 25 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.25-20-25 | 22630.25 | SUS304 | - | 20 | 25 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.25-20-30 | 22630.25 | SUS304 | - | 20 | 30 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.26-1-2 | 22630.26 | SUS420 | - | 1 | 2 | 3 | 3.5 | 0.1 | 0.5 | 0 | 3 |
| 22630.26-2-3 | 22630.26 | SUS420 | - | 2 | 3 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.26-2-4 | 22630.26 | SUS420 | - | 2 | 4 | 4 | 4 | 0.5 | 1 | 0 | 3 |
| 22630.26-3-4 | 22630.26 | SUS420 | - | 3 | 4 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.26-3-5 | 22630.26 | SUS420 | - | 3 | 5 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.26-3-6 | 22630.26 | SUS420 | - | 3 | 6 | 5 | 7 | 0.5 | 2 | 1.2 | 5 |
| 22630.26-4-5 | 22630.26 | SUS420 | - | 4 | 5 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.26-4-6 | 22630.26 | SUS420 | - | 4 | 6 | 5 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.26-5-6 | 22630.26 | SUS420 | - | 5 | 6 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.26-5-8 | 22630.26 | SUS420 | - | 5 | 8 | 10 | 9 | 1 | 3 | 1.2 | 6 |
| 22630.26-6-8 | 22630.26 | SUS420 | - | 6 | 8 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.26-6-10 | 22630.26 | SUS420 | - | 6 | 10 | 12 | 11 | 1 | 3 | 1.2 | 8 |
| 22630.26-8-10 | 22630.26 | SUS420 | - | 8 | 10 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.26-8-12 | 22630.26 | SUS420 | - | 8 | 12 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.26-8-13 | 22630.26 | SUS420 | - | 8 | 13 | 15 | 12 | 1.5 | 4 | 2.2 | 8 |
| 22630.26-10-12 | 22630.26 | SUS420 | - | 10 | 12 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-10-13 | 22630.26 | SUS420 | - | 10 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-10-15 | 22630.26 | SUS420 | - | 10 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-12-13 | 22630.26 | SUS420 | - | 12 | 13 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-12-15 | 22630.26 | SUS420 | - | 12 | 15 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-12-16 | 22630.26 | SUS420 | - | 12 | 16 | 15 | 14 | 2 | 4 | 2.2 | 10 |
| 22630.26-13-15 | 22630.26 | SUS420 | - | 13 | 15 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.26-13-16 | 22630.26 | SUS420 | - | 13 | 16 | 22 | 14 | 2 | 4 | 3.5 | 10 |
| 22630.26-16-20 | 22630.26 | SUS420 | - | 16 | 20 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.26-16-25 | 22630.26 | SUS420 | - | 16 | 25 | 22 | 15 | 3 | 5 | 3.5 | 10 |
| 22630.26-20-25 | 22630.26 | SUS420 | - | 20 | 25 | 30 | 20 | 3 | 5 | 3.5 | 15 |
| 22630.26-20-30 | 22630.26 | SUS420 | - | 20 | 30 | 30 | 20 | 3 | 5 | 3.5 | 15 |
