固定銷／定位銷

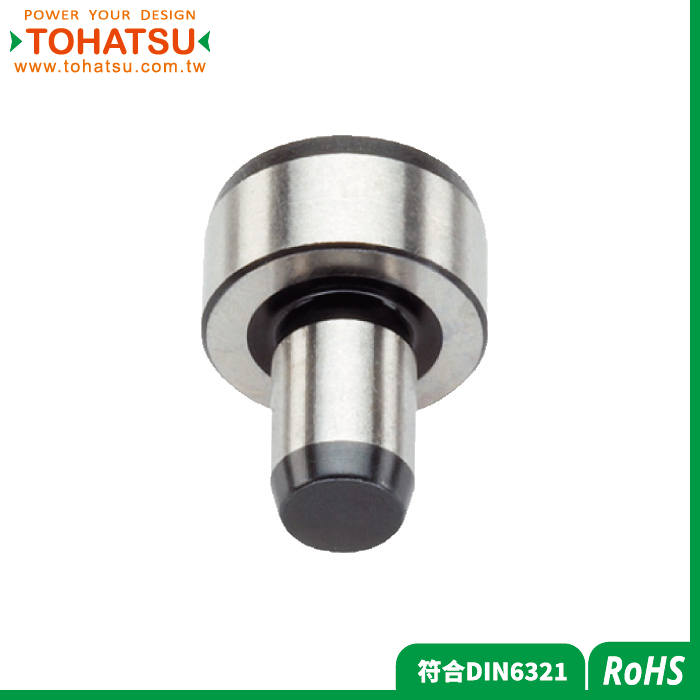

定位銷(材質:鋼、不銹鋼)(平面)
22630
固定銷又稱定位銷，主要作用在兩零件之間緊固的螺絲間，保證位置準確性。
基本形式是圓柱銷(直銷)和圓錐銷(斜銷)區別如下
圓柱銷(直銷):1.可預加工。2.精確定位。3.抗剪作用。
利用微小過盈固定在鉸制孔中，可以承受不大的載荷。為保證定位精度和聯接的緊固性,不適合經常拆卸。
主要用於定位，也用作聯接銷和安全銷。
圓錐銷(斜銷):1.通常配合。2.經常拆卸。3.快速定位。
具有1：50的錐度，自鎖性好，定位精度高，安裝方便，多次裝拆對定位精度的影響較小。
主要用於定位,也可用作聯接銷,銷孔需鉸制。
規格數據
| 尺寸圖/Dimensional drawing |
 |
|
品號
Product No.
|
TYPE
|
材質
material
|
硬度(HRC)
hardness
|
B
|
A
|
E
|
D
|
ℓ
|
C
|
|---|---|---|---|---|---|---|---|---|---|
| 22630.1-1-2 | 22630.1 | SUJ2 | 58~62 | 1 | 2 | 3 | 2 | 0 | 0.2 |
| 22630.1-2-3 | 22630.1 | SUJ2 | 58~62 | 2 | 3 | 4 | 2 | 0 | 0.5 |
| 22630.1-3-5 | 22630.1 | SUJ2 | 58~62 | 3 | 5 | 5 | 3 | 1.2 | 0.6 |
| 22630.1-4-6 | 22630.1 | SUJ2 | 58~62 | 4 | 6 | 5 | 3 | 1.2 | 0.6 |
| 22630.1-4-8 | 22630.1 | SUJ2 | 58~62 | 4 | 8 | 5 | 3 | 1.2 | 0.6 |
| 22630.1-5-8 | 22630.1 | SUJ2 | 58~62 | 5 | 8 | 8 | 4 | 1.2 | 0.6 |
| 22630.1-6-8 | 22630.1 | SUJ2 | 58~62 | 6 | 8 | 10 | 5 | 1.2 | 0.6 |
| 22630.1-6-10 | 22630.1 | SUJ2 | 58~62 | 6 | 10 | 10 | 5 | 1.2 | 0.6 |
| 22630.1-8-12 | 22630.1 | SUJ2 | 58~62 | 8 | 12 | 12 | 6 | 2.2 | 1.2 |
| 22630.1-10-12 | 22630.1 | SUJ2 | 58~62 | 10 | 12 | 16 | 10 | 2.2 | 1.5 |
| 22630.1-10-14 | 22630.1 | SUJ2 | 58~62 | 10 | 14 | 16 | 10 | 2.2 | 1.5 |
| 22630.1-12-16 | 22630.1 | SUJ2 | 58~62 | 12 | 16 | 20 | 20 | 2.2 | 1.5 |
| 22630.1-13-18 | 22630.1 | SUJ2 | 58~62 | 13 | 18 | 22 | 22 | 3.5 | 1.5 |
| 22630.1-16-25 | 22630.1 | SUJ2 | 58~62 | 16 | 25 | 24 | 25 | 3.5 | 2.5 |
| 22630.1-20-30 | 22630.1 | SUJ2 | 58~62 | 20 | 30 | 32 | 30 | 3.5 | 2.5 |
| 22630.2-1-2 | 22630.2 | SUJ2 | - | 1 | 2 | 3 | 2 | 0 | 0.2 |
| 22630.2-2-3 | 22630.2 | SUJ2 | - | 2 | 3 | 4 | 2 | 0 | 0.5 |
| 22630.2-3-5 | 22630.2 | SUJ2 | - | 3 | 5 | 5 | 3 | 1.2 | 0.6 |
| 22630.2-4-6 | 22630.2 | SUJ2 | - | 4 | 6 | 5 | 3 | 1.2 | 0.6 |
| 22630.2-4-8 | 22630.2 | SUJ2 | - | 4 | 8 | 5 | 3 | 1.2 | 0.6 |
| 22630.2-5-8 | 22630.2 | SUJ2 | - | 5 | 8 | 8 | 4 | 1.2 | 0.6 |
| 22630.2-6-8 | 22630.2 | SUJ2 | - | 6 | 8 | 10 | 5 | 1.2 | 0.6 |
| 22630.2-6-10 | 22630.2 | SUJ2 | - | 6 | 10 | 10 | 5 | 1.2 | 0.6 |
| 22630.2-8-12 | 22630.2 | SUJ2 | - | 8 | 12 | 12 | 6 | 2.2 | 1.2 |
| 22630.2-10-12 | 22630.2 | SUJ2 | - | 10 | 12 | 16 | 10 | 2.2 | 1.5 |
| 22630.2-10-14 | 22630.2 | SUJ2 | - | 10 | 14 | 16 | 10 | 2.2 | 1.5 |
| 22630.2-12-16 | 22630.2 | SUJ2 | - | 12 | 16 | 20 | 20 | 2.2 | 1.5 |
| 22630.2-13-18 | 22630.2 | SUJ2 | - | 13 | 18 | 22 | 22 | 3.5 | 1.5 |
| 22630.2-16-25 | 22630.2 | SUJ2 | - | 16 | 25 | 24 | 25 | 3.5 | 2.5 |
| 22630.2-20-30 | 22630.2 | SUJ2 | - | 20 | 30 | 32 | 30 | 3.5 | 2.5 |
| 22630.3-1-2 | 22630.3 | SUS304 | - | 1 | 2 | 3 | 2 | 0 | 0.2 |
| 22630.3-2-3 | 22630.3 | SUS304 | - | 2 | 3 | 4 | 2 | 0 | 0.5 |
| 22630.3-3-5 | 22630.3 | SUS304 | - | 3 | 5 | 5 | 3 | 1.2 | 0.6 |
| 22630.3-4-6 | 22630.3 | SUS304 | - | 4 | 6 | 5 | 3 | 1.2 | 0.6 |
| 22630.3-4-8 | 22630.3 | SUS304 | - | 4 | 8 | 5 | 3 | 1.2 | 0.6 |
| 22630.3-5-8 | 22630.3 | SUS304 | - | 5 | 8 | 8 | 4 | 1.2 | 0.6 |
| 22630.3-6-8 | 22630.3 | SUS304 | - | 6 | 8 | 10 | 5 | 1.2 | 0.6 |
| 22630.3-6-10 | 22630.3 | SUS304 | - | 6 | 10 | 10 | 5 | 1.2 | 0.6 |
| 22630.3-8-12 | 22630.3 | SUS304 | - | 8 | 12 | 12 | 6 | 2.2 | 1.2 |
| 22630.3-10-12 | 22630.3 | SUS304 | - | 10 | 12 | 16 | 10 | 2.2 | 1.5 |
| 22630.3-10-14 | 22630.3 | SUS304 | - | 10 | 14 | 16 | 10 | 2.2 | 1.5 |
| 22630.3-12-16 | 22630.3 | SUS304 | - | 12 | 16 | 20 | 20 | 2.2 | 1.5 |
| 22630.3-13-18 | 22630.3 | SUS304 | - | 13 | 18 | 22 | 22 | 3.5 | 1.5 |
| 22630.3-16-25 | 22630.3 | SUS304 | - | 16 | 25 | 24 | 25 | 3.5 | 2.5 |
| 22630.3-20-30 | 22630.3 | SUS304 | - | 20 | 30 | 32 | 30 | 3.5 | 2.5 |
| 22630.4-1-2 | 22630.4 | SUS420 | 45~50 | 1 | 2 | 3 | 2 | 0 | 0.2 |
| 22630.4-2-3 | 22630.4 | SUS420 | 45~50 | 2 | 3 | 4 | 2 | 0 | 0.5 |
| 22630.4-3-5 | 22630.4 | SUS420 | 45~50 | 3 | 5 | 5 | 3 | 1.2 | 0.6 |
| 22630.4-4-6 | 22630.4 | SUS420 | 45~50 | 4 | 6 | 5 | 3 | 1.2 | 0.6 |
| 22630.4-4-8 | 22630.4 | SUS420 | 45~50 | 4 | 8 | 5 | 3 | 1.2 | 0.6 |
| 22630.4-5-8 | 22630.4 | SUS420 | 45~50 | 5 | 8 | 8 | 4 | 1.2 | 0.6 |
| 22630.4-6-8 | 22630.4 | SUS420 | 45~50 | 6 | 8 | 10 | 5 | 1.2 | 0.6 |
| 22630.4-6-10 | 22630.4 | SUS420 | 45~50 | 6 | 10 | 10 | 5 | 1.2 | 0.6 |
| 22630.4-8-12 | 22630.4 | SUS420 | 45~50 | 8 | 12 | 12 | 6 | 2.2 | 1.2 |
| 22630.4-10-12 | 22630.4 | SUS420 | 45~50 | 10 | 12 | 16 | 10 | 2.2 | 1.5 |
| 22630.4-10-14 | 22630.4 | SUS420 | 45~50 | 10 | 14 | 16 | 10 | 2.2 | 1.5 |
| 22630.4-12-16 | 22630.4 | SUS420 | 45~50 | 12 | 16 | 20 | 20 | 2.2 | 1.5 |
| 22630.4-13-18 | 22630.4 | SUS420 | 45~50 | 13 | 18 | 22 | 22 | 3.5 | 1.5 |
| 22630.4-16-25 | 22630.4 | SUS420 | 45~50 | 16 | 25 | 24 | 25 | 3.5 | 2.5 |
| 22630.4-20-30 | 22630.4 | SUS420 | 45~50 | 20 | 30 | 32 | 30 | 3.5 | 2.5 |
