高精密墊片／華司

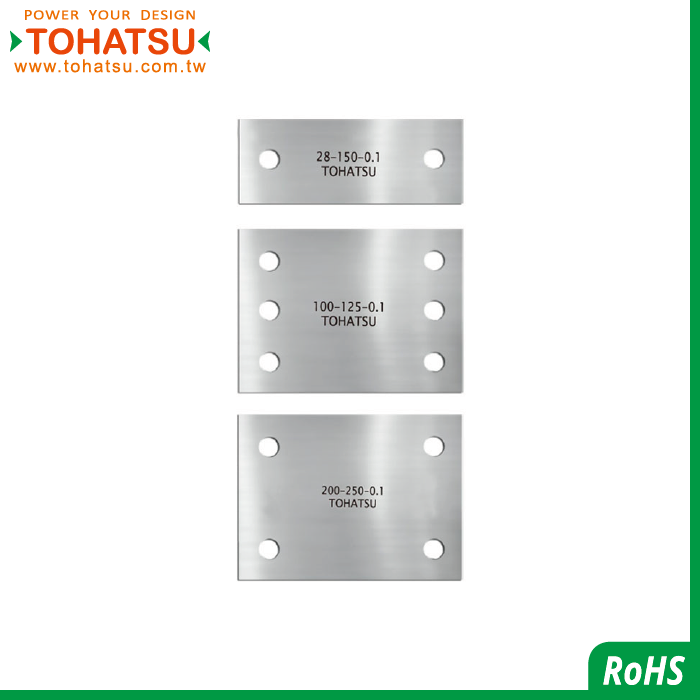

汽車模墊片(材質:SUS304)
SMPP
墊圈又稱華司，是通常用於墊在連接件與螺母之間的零件。
主要用途是作為間隔物用來保護被連接件的表面不受螺母擦傷，分散螺母對被連接件的壓力，及減少振動帶來的脫離。
常用材質:鋼、不銹鋼、銅、鋁、鐵、塑膠、鈦
主要應用行業:工業、模具、設備...等
墊圈可分為三種類型
1.平墊圈
作用:防止連接件表面損傷，增大接觸面積分散壓力。
2.彈簧墊圈
作用:用於柔性地防止鬆動及振動。
3.防鬆墊圈
作用:防止連接件鬆動及防止螺絲的轉動。
墊片是兩個物體之間的機械密封，通常用以防止兩個物體之間受到壓力、腐蝕、和管路泄漏。
由於機械加工表面不可能完美，使用墊片即可填補不規則性。
主要用途：管法蘭，閥，泵，壓力容器...等一些專業設備的密封
主要應用行業為石化，煉化，電力，冶金，製造等行業
規格數據
| 厚度公差表/Thickness tolerance table | |||||
| 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | |
| ±0.01 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
| 尺寸圖/Dimensional drawing | ||||||
 |
||||||
| 規格表\Specification Table |
|
品號
|
W
|
L
|
T
|
ℓ
|
ℓ1
|
|---|---|---|---|---|---|
| SMPP-28X75X0.05 | 28 | 75 | 0.05 | 45 | - |
| SMPP-28X100X0.05 | 28 | 100 | 0.05 | 50 | - |
| SMPP-28X125X0.05 | 28 | 125 | 0.05 | 75 | - |
| SMPP-28X150X0.05 | 28 | 150 | 0.05 | 100 | - |
| SMPP-28X200X0.05 | 28 | 200 | 0.05 | 150 | - |
| SMPP-28X75X0.1 | 28 | 75 | 0.1 | 45 | - |
| SMPP-28X100X0.1 | 28 | 100 | 0.1 | 50 | - |
| SMPP-28X125X0.1 | 28 | 125 | 0.1 | 75 | - |
| SMPP-28X150X0.1 | 28 | 150 | 0.1 | 100 | - |
| SMPP-28X200X0.1 | 28 | 200 | 0.1 | 150 | - |
| SMPP-38X75X0.05 | 38 | 75 | 0.05 | 45 | - |
| SMPP-38X100X0.05 | 38 | 100 | 0.05 | 50 | - |
| SMPP-38X125X0.05 | 38 | 125 | 0.05 | 75 | - |
| SMPP-38X150X0.05 | 38 | 150 | 0.05 | 100 | - |
| SMPP-38X200X0.05 | 38 | 200 | 0.05 | 150 | - |
| SMPP-38X75X0.1 | 38 | 75 | 0.1 | 45 | - |
| SMPP-38X100X0.1 | 38 | 100 | 0.1 | 50 | - |
| SMPP-38X125X0.1 | 38 | 125 | 0.1 | 75 | - |
| SMPP-38X150X0.1 | 38 | 150 | 0.1 | 100 | - |
| SMPP-38X200X0.1 | 38 | 200 | 0.1 | 150 | - |
| SMPP-48X75X0.05 | 48 | 75 | 0.05 | 48 | - |
| SMPP-48X100X0.05 | 48 | 100 | 0.05 | 50 | - |
| SMPP-48X125X0.05 | 48 | 125 | 0.05 | 75 | - |
| SMPP-48X150X0.05 | 48 | 150 | 0.05 | 100 | - |
| SMPP-48X200X0.05 | 48 | 200 | 0.05 | 150 | - |
| SMPP-48X75X0.1 | 48 | 75 | 0.1 | 48 | - |
| SMPP-48X100X0.1 | 48 | 100 | 0.1 | 50 | - |
| SMPP-48X125X0.1 | 48 | 125 | 0.1 | 75 | - |
| SMPP-48X150X0.1 | 48 | 150 | 0.1 | 100 | - |
| SMPP-48X200X0.1 | 48 | 200 | 0.1 | 150 | - |
| SMPP-48X75X0.2 | 48 | 75 | 0.2 | 48 | - |
| SMPP-48X100X0.2 | 48 | 100 | 0.2 | 50 | - |
| SMPP-48X125X0.2 | 48 | 125 | 0.2 | 75 | - |
| SMPP-48X150X0.2 | 48 | 150 | 0.2 | 100 | - |
| SMPP-48X200X0.2 | 48 | 200 | 0.2 | 150 | - |
| SMPP-48X75X0.3 | 48 | 75 | 0.3 | 48 | - |
| SMPP-48X100X0.3 | 48 | 100 | 0.3 | 50 | - |
| SMPP-48X125X0.3 | 48 | 125 | 0.3 | 75 | - |
| SMPP-48X150X0.3 | 48 | 150 | 0.3 | 100 | - |
| SMPP-48X200X0.3 | 48 | 200 | 0.3 | 150 | - |
| SMPP-48X75X0.5 | 48 | 75 | 0.5 | 48 | - |
| SMPP-48X100X0.5 | 48 | 100 | 0.5 | 50 | - |
| SMPP-48X125X0.5 | 48 | 125 | 0.5 | 75 | - |
| SMPP-48X150X0.5 | 48 | 150 | 0.5 | 100 | - |
| SMPP-48X200X0.5 | 48 | 200 | 0.5 | 150 | - |
| SMPP-58X75X0.05 | 58 | 75 | 0.05 | 45 | - |
| SMPP-58X100X0.05 | 58 | 100 | 0.05 | 50 | - |
| SMPP-58X125X0.05 | 58 | 125 | 0.05 | 75 | - |
| SMPP-58X150X0.05 | 58 | 150 | 0.05 | 100 | - |
| SMPP-58X75X0.1 | 58 | 75 | 0.1 | 45 | - |
| SMPP-58X100X0.1 | 58 | 100 | 0.1 | 50 | - |
| SMPP-58X125X0.1 | 58 | 125 | 0.1 | 75 | - |
| SMPP-58X150X0.1 | 58 | 150 | 0.1 | 100 | - |
| SMPP-75X75X0.05 | 75 | 75 | 0.05 | 25 | - |
| SMPP-75X100X0.05 | 75 | 100 | 0.05 | 50 | - |
| SMPP-75X125X0.05 | 75 | 125 | 0.05 | 75 | - |
| SMPP-75X150X0.05 | 75 | 150 | 0.05 | 100 | - |
| SMPP-75X200X0.05 | 75 | 200 | 0.05 | 150 | - |
| SMPP-75X75X0.1 | 75 | 75 | 0.1 | 25 | - |
| SMPP-75X100X0.1 | 75 | 100 | 0.1 | 50 | - |
| SMPP-75X125X0.1 | 75 | 125 | 0.1 | 75 | - |
| SMPP-75X150X0.1 | 75 | 150 | 0.1 | 100 | - |
| SMPP-75X200X0.1 | 75 | 200 | 0.1 | 150 | - |
| SMPP-75X75X0.2 | 75 | 75 | 0.2 | 25 | - |
| SMPP-75X100X0.2 | 75 | 100 | 0.2 | 50 | - |
| SMPP-75X125X0.2 | 75 | 125 | 0.2 | 75 | - |
| SMPP-75X150X0.2 | 75 | 150 | 0.2 | 100 | - |
| SMPP-75X200X0.2 | 75 | 200 | 0.2 | 150 | - |
| SMPP-75X75X0.3 | 75 | 75 | 0.3 | 25 | - |
| SMPP-75X100X0.3 | 75 | 100 | 0.3 | 50 | - |
| SMPP-75X125X0.3 | 75 | 125 | 0.3 | 75 | - |
| SMPP-75X150X0.3 | 75 | 150 | 0.3 | 100 | - |
| SMPP-75X200X0.3 | 75 | 200 | 0.3 | 150 | - |
| SMPP-75X75X0.5 | 75 | 75 | 0.5 | 25 | - |
| SMPP-75X100X0.5 | 75 | 100 | 0.5 | 50 | - |
| SMPP-75X125X0.5 | 75 | 125 | 0.5 | 75 | - |
| SMPP-75X150X0.5 | 75 | 150 | 0.5 | 100 | - |
| SMPP-75X200X0.5 | 75 | 200 | 0.5 | 150 | - |
| SMPP-100X100X0.05 | 100 | 100 | 0.05 | 50 | 50 |
| SMPP-100X125X0.05 | 100 | 125 | 0.05 | 75 | 50 |
| SMPP-100X150X0.05 | 100 | 150 | 0.05 | 100 | 50 |
| SMPP-100X200X0.05 | 100 | 200 | 0.05 | 150 | 50 |
| SMPP-100X250X0.05 | 100 | 250 | 0.05 | 200 | 50 |
| SMPP-100X300X0.05 | 100 | 300 | 0.05 | 200 | 50 |
| SMPP-100X100X0.1 | 100 | 100 | 0.1 | 50 | 50 |
| SMPP-100X125X0.1 | 100 | 125 | 0.1 | 75 | 50 |
| SMPP-100X150X0.1 | 100 | 150 | 0.1 | 100 | 50 |
| SMPP-100X200X0.1 | 100 | 200 | 0.1 | 150 | 50 |
| SMPP-100X250X0.1 | 100 | 250 | 0.1 | 200 | 50 |
| SMPP-100X300X0.1 | 100 | 300 | 0.1 | 200 | 50 |
| SMPP-100X100X0.2 | 100 | 100 | 0.2 | 50 | 50 |
| SMPP-100X125X0.2 | 100 | 125 | 0.2 | 75 | 50 |
| SMPP-100X150X0.2 | 100 | 150 | 0.2 | 100 | 50 |
| SMPP-100X200X0.2 | 100 | 200 | 0.2 | 150 | 50 |
| SMPP-100X250X0.2 | 100 | 250 | 0.2 | 200 | 50 |
| SMPP-100X300X0.2 | 100 | 300 | 0.2 | 200 | 50 |
| SMPP-100X100X0.3 | 100 | 100 | 0.3 | 50 | 50 |
| SMPP-100X125X0.3 | 100 | 125 | 0.3 | 75 | 50 |
| SMPP-100X150X0.3 | 100 | 150 | 0.3 | 100 | 50 |
| SMPP-100X200X0.3 | 100 | 200 | 0.3 | 150 | 50 |
| SMPP-100X250X0.3 | 100 | 250 | 0.3 | 200 | 50 |
| SMPP-100X300X0.3 | 100 | 300 | 0.3 | 200 | 50 |
| SMPP-100X100X0.5 | 100 | 100 | 0.5 | 50 | 50 |
| SMPP-100X125X0.5 | 100 | 125 | 0.5 | 75 | 50 |
| SMPP-100X150X0.5 | 100 | 150 | 0.5 | 100 | 50 |
| SMPP-100X200X0.5 | 100 | 200 | 0.5 | 150 | 50 |
| SMPP-100X250X0.5 | 100 | 250 | 0.5 | 200 | 50 |
| SMPP-100X300X0.5 | 100 | 300 | 0.5 | 200 | 50 |
| SMPP-125X125X0.05 | 125 | 125 | 0.05 | 75 | 50 |
| SMPP-125X150X0.05 | 125 | 150 | 0.05 | 100 | 50 |
| SMPP-125X200X0.05 | 125 | 200 | 0.05 | 150 | 50 |
| SMPP-125X250X0.05 | 125 | 250 | 0.05 | 200 | 50 |
| SMPP-125X300X0.05 | 125 | 300 | 0.05 | 200 | 50 |
| SMPP-125X350X0.05 | 125 | 350 | 0.05 | 200 | 50 |
| SMPP-125X125X0.1 | 125 | 125 | 0.1 | 75 | 50 |
| SMPP-125X150X0.1 | 125 | 150 | 0.1 | 100 | 50 |
| SMPP-125X200X0.1 | 125 | 200 | 0.1 | 150 | 50 |
| SMPP-125X250X0.1 | 125 | 250 | 0.1 | 200 | 50 |
| SMPP-125X300X0.1 | 125 | 300 | 0.1 | 200 | 50 |
| SMPP-125X350X0.1 | 125 | 350 | 0.1 | 200 | 50 |
| SMPP-125X125X0.2 | 125 | 125 | 0.2 | 75 | 50 |
| SMPP-125X150X0.2 | 125 | 150 | 0.2 | 100 | 50 |
| SMPP-125X200X0.2 | 125 | 200 | 0.2 | 150 | 50 |
| SMPP-125X250X0.2 | 125 | 250 | 0.2 | 200 | 50 |
| SMPP-125X300X0.2 | 125 | 300 | 0.2 | 200 | 50 |
| SMPP-125X350X0.2 | 125 | 350 | 0.2 | 200 | 50 |
| SMPP-125X125X0.3 | 125 | 125 | 0.3 | 75 | 50 |
| SMPP-125X150X0.3 | 125 | 150 | 0.3 | 100 | 50 |
| SMPP-125X200X0.3 | 125 | 200 | 0.3 | 150 | 50 |
| SMPP-125X250X0.3 | 125 | 250 | 0.3 | 200 | 50 |
| SMPP-125X300X0.3 | 125 | 300 | 0.3 | 200 | 50 |
| SMPP-125X350X0.3 | 125 | 350 | 0.3 | 200 | 50 |
| SMPP-125X125X0.5 | 125 | 125 | 0.5 | 75 | 50 |
| SMPP-125X150X0.5 | 125 | 150 | 0.5 | 100 | 50 |
| SMPP-125X200X0.5 | 125 | 200 | 0.5 | 150 | 50 |
| SMPP-125X250X0.5 | 125 | 250 | 0.5 | 200 | 50 |
| SMPP-125X300X0.5 | 125 | 300 | 0.5 | 200 | 50 |
| SMPP-125X350X0.5 | 125 | 350 | 0.5 | 200 | 50 |
| SMPP-150X150X0.05 | 150 | 150 | 0.05 | 100 | 100 |
| SMPP-150X200X0.05 | 150 | 200 | 0.05 | 150 | 100 |
| SMPP-150X250X0.05 | 150 | 250 | 0.05 | 200 | 100 |
| SMPP-150X300X0.05 | 150 | 300 | 0.05 | 250 | 100 |
| SMPP-150X150X0.1 | 150 | 150 | 0.1 | 100 | 100 |
| SMPP-150X200X0.1 | 150 | 200 | 0.1 | 150 | 100 |
| SMPP-150X250X0.1 | 150 | 250 | 0.1 | 200 | 100 |
| SMPP-150X300X0.1 | 150 | 300 | 0.1 | 250 | 100 |
| SMPP-150X150X0.2 | 150 | 150 | 0.2 | 100 | 100 |
| SMPP-150X200X0.2 | 150 | 200 | 0.2 | 150 | 100 |
| SMPP-150X250X0.2 | 150 | 250 | 0.2 | 200 | 100 |
| SMPP-150X300X0.2 | 150 | 300 | 0.2 | 250 | 100 |
| SMPP-150X150X0.3 | 150 | 150 | 0.3 | 100 | 100 |
| SMPP-150X200X0.3 | 150 | 200 | 0.3 | 150 | 100 |
| SMPP-150X250X0.3 | 150 | 250 | 0.3 | 200 | 100 |
| SMPP-150X300X0.3 | 150 | 300 | 0.3 | 250 | 100 |
| SMPP-150X150X0.5 | 150 | 150 | 0.5 | 100 | 100 |
| SMPP-150X200X0.5 | 150 | 200 | 0.5 | 150 | 100 |
| SMPP-150X250X0.5 | 150 | 250 | 0.5 | 200 | 100 |
| SMPP-150X300X0.5 | 150 | 300 | 0.5 | 250 | 100 |
| SMPP-200X200X0.05 | 200 | 200 | 0.05 | 150 | 150 |
| SMPP-200X250X0.05 | 200 | 250 | 0.05 | 200 | 150 |
| SMPP-200X300X0.05 | 200 | 300 | 0.05 | 250 | 150 |
| SMPP-200X200X0.1 | 200 | 200 | 0.1 | 150 | 150 |
| SMPP-200X250X0.1 | 200 | 250 | 0.1 | 200 | 150 |
| SMPP-200X300X0.1 | 200 | 300 | 0.1 | 250 | 150 |
