圓線彈簧

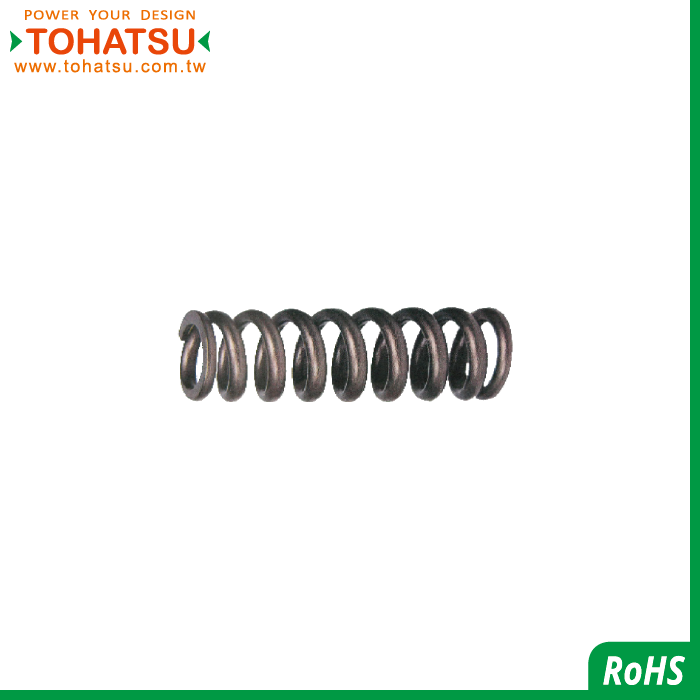

圓線彈簧(材質:SWP、壓縮量60%)
AR

圓線彈簧又稱螺旋彈簧,為壓縮彈簧、壓簧的一種,是彈簧中最常見的種類,截面為圓形,主為回彈、減震、提供推力。材質有琴鋼線(SWP)與不鏽鋼線(SUS304),其耐熱與荷重程度不同,規格有兩端磨平與無磨平。頂出力量較小,壓縮量較大。通常運用在頂出銷、滑塊等頂出量(高度)較高的設計

荷重計算方式
荷重(N)=定數(N/mm)×壓縮量(mm)

此產品接受客製,不限數量,請填寫彈簧客製表單

規格數據

圓線彈簧客製化表單(Round Wire Spring Customized Form):請點擊

材質
Materials
顏色
Color
使用溫度(ºC)
Operating temperature (ºC)
定數設定表
Spring constant setting table
圓線彈簧公差表
Round Wire Spring Tolerance Table
外徑範圍
Outer diameter range
定數(N/mm)
Spring constant
外徑
Outer diameter
自由長
Free length
SWP
本色
True Color
80 3~16 0.3 ≦13 >13 ≦50 ≧55
18~27 0.5 +0/-0.5 +0/-0.8 ±1.5 ±2.5
規格表\Specification Table
品號
Product No.
外徑
Outside diameter
內徑
inside diameter
線徑
Wire Diameter
自由長
Free length
定數(N/mm)
Spring constant
最大壓縮量(mm)
Max compression
AR03-05 3 2.54 0.23 5 0.3 3
AR03-10 3 2.5 0.25 10 0.3 6
AR03-15 3 2.4 0.3 15 0.3 9
AR03-20 3 2.4 0.3 20 0.3 12
AR03-25 3 2.36 0.32 25 0.3 15
AR03-30 3 2.36 0.32 30 0.3 18
AR03-35 3 2.3 0.35 35 0.3 21
AR03-40 3 2.3 0.35 40 0.3 24
AR04-05 4 3.48 0.26 5 0.3 3
AR04-10 4 3.42 0.29 10 0.3 6
AR04-15 4 3.36 0.32 15 0.3 9
AR04-20 4 3.24 0.38 20 0.3 12
AR04-25 4 3.24 0.38 25 0.3 15
AR04-30 4 3.2 0.4 30 0.3 18
AR04-35 4 3.2 0.4 35 0.3 21
AR04-40 4 3.1 0.45 40 0.3 24
AR04-45 4 3.1 0.45 45 0.3 27
AR04-50 4 3.1 0.45 50 0.3 30
AR04-55 4 3.1 0.45 55 0.3 33
AR04-60 4 3 0.5 60 0.3 36
AR04-65 4 3 0.5 65 0.3 39
AR04-70 4 3 0.5 70 0.3 42
AR05-05 5 4.4 0.3 5 0.3 3
AR05-10 5 4.3 0.35 10 0.3 6
AR05-15 5 4.3 0.35 15 0.3 9
AR05-20 5 4.2 0.4 20 0.3 12
AR05-25 5 4.1 0.45 25 0.3 15
AR05-30 5 4.1 0.45 30 0.3 18
AR05-35 5 4 0.5 35 0.3 21
AR05-40 5 4 0.5 40 0.3 24
AR05-45 5 3.9 0.55 45 0.3 27
AR05-50 5 3.9 0.55 50 0.3 30
AR05-55 5 3.9 0.55 55 0.3 33
AR05-60 5 3.9 0.55 60 0.3 36
AR05-65 5 3.9 0.55 65 0.3 39
AR05-70 5 3.9 0.55 70 0.3 42
AR06-05 6 5.36 0.32 5 0.3 3
AR06-10 6 5.2 0.4 10 0.3 6
AR06-15 6 5.2 0.4 15 0.3 9
AR06-20 6 5 0.5 20 0.3 12
AR06-25 6 5 0.5 25 0.3 15
AR06-30 6 5 0.5 30 0.3 18
AR06-35 6 4.9 0.55 35 0.3 21
AR06-40 6 4.9 0.55 40 0.3 24
AR06-45 6 4.8 0.6 45 0.3 27
AR06-50 6 4.8 0.6 50 0.3 30
AR06-55 6 4.8 0.6 55 0.3 33
AR06-60 6 4.8 0.6 60 0.3 36
AR06-65 6 4.8 0.6 65 0.3 39
AR06-70 6 4.8 0.6 70 0.3 42
AR06-80 6 4.7 0.65 80 0.3 48
AR08-10 8 7.1 0.45 10 0.3 6
AR08-15 8 7 0.5 15 0.3 9
AR08-20 8 7 0.5 20 0.3 12
AR08-25 8 6.9 0.55 25 0.3 15
AR08-30 8 6.8 0.6 30 0.3 18
AR08-35 8 6.8 0.6 35 0.3 21
AR08-40 8 6.8 0.6 40 0.3 24
AR08-45 8 6.6 0.7 45 0.3 27
AR08-50 8 6.6 0.7 50 0.3 30
AR08-55 8 6.6 0.7 55 0.3 33
AR08-60 8 6.6 0.7 60 0.3 36
AR08-65 8 6.6 0.7 65 0.3 39
AR08-70 8 6.6 0.7 70 0.3 42
AR08-80 8 6.5 0.75 80 0.3 48
AR10-10 10 8.9 0.55 10 0.3 6
AR10-15 10 8.8 0.6 15 0.3 9
AR10-20 10 8.7 0.65 20 0.3 12
AR10-25 10 8.7 0.65 25 0.3 15
AR10-30 10 8.6 0.7 30 0.3 18
AR10-35 10 8.6 0.7 35 0.3 21
AR10-40 10 8.6 0.7 40 0.3 24
AR10-45 10 8.4 0.8 45 0.3 27
AR10-50 10 8.4 0.8 50 0.3 30
AR10-55 10 8.4 0.8 55 0.3 33
AR10-60 10 8.3 0.85 60 0.3 36
AR10-65 10 8.3 0.85 65 0.3 39
AR10-70 10 8.3 0.85 70 0.3 42
AR10-80 10 8.2 0.9 80 0.3 48
AR12-10 12 10.8 0.6 10 0.3 6
AR12-15 12 10.7 0.65 15 0.3 9
AR12-20 12 10.7 0.65 20 0.3 12
AR12-25 12 10.6 0.7 25 0.3 15
AR12-30 12 10.6 0.7 30 0.3 18
AR12-35 12 10.6 0.7 35 0.3 21
AR12-40 12 10.4 0.8 40 0.3 24
AR12-45 12 10.4 0.8 45 0.3 27
AR12-50 12 10.2 0.9 50 0.3 30
AR12-55 12 10.2 0.9 55 0.3 33
AR12-60 12 10.2 0.9 60 0.3 36
AR12-65 12 10.2 0.9 65 0.3 39
AR12-70 12 10.2 0.9 70 0.3 42
AR12-80 12 10 1 80 0.3 48
AR13-10 13 11.8 0.6 10 0.3 6
AR13-15 13 11.6 0.7 15 0.3 9
AR13-20 13 11.6 0.7 20 0.3 12
AR13-25 13 11.4 0.8 25 0.3 15
AR13-30 13 11.4 0.8 30 0.3 18
AR13-35 13 11.4 0.8 35 0.3 21
AR13-40 13 11.2 0.9 40 0.3 24
AR13-45 13 11.2 0.9 45 0.3 27
AR13-50 13 11.2 0.9 50 0.3 30
AR13-55 13 11.2 0.9 55 0.3 33
AR13-60 13 11 1 60 0.3 36
AR13-65 13 11 1 65 0.3 39
AR13-70 13 11 1 70 0.3 42
AR13-80 13 11 1 80 0.3 48
AR13-90 13 11 1 90 0.3 54
AR14-15 14 12.6 0.7 15 0.3 9
AR14-20 14 12.5 0.75 20 0.3 12
AR14-25 14 12.4 0.8 25 0.3 15
AR14-30 14 12.4 0.8 30 0.3 18
AR14-35 14 12.4 0.8 35 0.3 21
AR14-40 14 12.2 0.9 40 0.3 24
AR14-45 14 12.2 0.9 45 0.3 27
AR14-50 14 12.2 0.9 50 0.3 30
AR14-55 14 12 1 55 0.3 33
AR14-60 14 12 1 60 0.3 36
AR14-65 14 12 1 65 0.3 39
AR14-70 14 12 1 70 0.3 42
AR14-80 14 11.8 1.1 80 0.3 48
AR14-90 14 11.8 1.1 90 0.3 54
AR16-15 16 14.5 0.75 15 0.3 9
AR16-20 16 14.4 0.8 20 0.3 12
AR16-25 16 14.2 0.9 25 0.3 15
AR16-30 16 14.2 0.9 30 0.3 18
AR16-35 16 14.2 0.9 35 0.3 21
AR16-40 16 14 1 40 0.3 24
AR16-45 16 14 1 45 0.3 27
AR16-50 16 14 1 50 0.3 30
AR16-55 16 14 1 55 0.3 33
AR16-60 16 13.8 1.1 60 0.3 36
AR16-65 16 13.8 1.1 65 0.3 39
AR16-70 16 13.8 1.1 70 0.3 42
AR16-80 16 13.8 1.1 80 0.3 48
AR16-90 16 13.6 1.2 90 0.3 54
AR18-20 18 16 1 20 0.5 12
AR18-25 18 16 1 25 0.5 15
AR18-30 18 15.8 1.1 30 0.5 18
AR18-35 18 15.8 1.1 35 0.5 21
AR18-40 18 15.6 1.2 40 0.5 24
AR18-45 18 15.6 1.2 45 0.5 27
AR18-50 18 15.6 1.2 50 0.5 30
AR18-55 18 15.4 1.3 55 0.5 33
AR18-60 18 15.4 1.3 60 0.5 36
AR18-65 18 15.4 1.3 65 0.5 39
AR18-70 18 15.4 1.3 70 0.5 42
AR18-80 18 15.2 1.4 80 0.5 48
AR20-20 20 18 1 20 0.5 12
AR20-25 20 17.8 1.1 25 0.5 15
AR20-30 20 17.8 1.1 30 0.5 18
AR20-35 20 17.6 1.2 35 0.5 21
AR20-40 20 17.6 1.2 40 0.5 24
AR20-45 20 17.6 1.2 45 0.5 27
AR20-50 20 17.4 1.3 50 0.5 30
AR20-55 20 17.4 1.3 55 0.5 33
AR20-60 20 17.4 1.3 60 0.5 36
AR20-65 20 17.4 1.3 65 0.5 39
AR20-70 20 17.2 1.4 70 0.5 42
AR20-80 20 17.2 1.4 80 0.5 48
AR22-20 22 19.8 1.1 20 0.5 12
AR22-25 22 19.6 1.2 25 0.5 15
AR22-30 22 19.6 1.2 30 0.5 18
AR22-35 22 19.4 1.3 35 0.5 21
AR22-40 22 19.4 1.3 40 0.5 24
AR22-45 22 19.4 1.3 45 0.5 27
AR22-50 22 19.2 1.4 50 0.5 30
AR22-55 22 19.2 1.4 55 0.5 33
AR22-60 22 19.2 1.4 60 0.5 36
AR22-65 22 19 1.5 65 0.5 39
AR22-70 22 19 1.5 70 0.5 42
AR22-80 22 19 1.5 80 0.5 48
AR27-30 27 24.4 1.3 30 0.5 18
AR27-35 27 24.2 1.4 35 0.5 21
AR27-40 27 24.2 1.4 40 0.5 24
AR27-45 27 24.2 1.4 45 0.5 27
AR27-50 27 23.8 1.6 50 0.5 30
AR27-55 27 23.8 1.6 55 0.5 33
AR27-60 27 23.8 1.6 60 0.5 36
AR27-65 27 23.6 1.7 65 0.5 39
AR27-70 27 23.6 1.7 70 0.5 42
AR27-80 27 23.6 1.7 80 0.5 48
