圓線彈簧

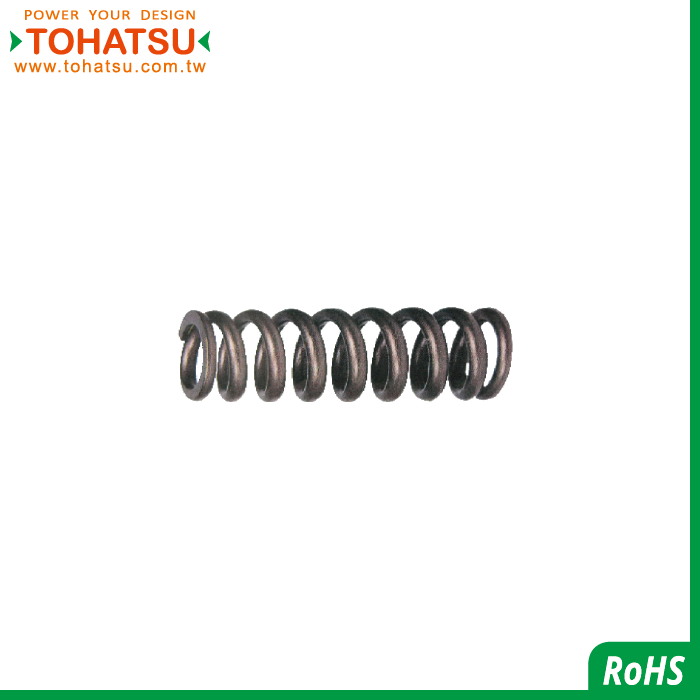

圓線彈簧(材質:SWP、壓縮量75%)
AY
圓線彈簧又稱螺旋彈簧，為壓縮彈簧、壓簧的一種，是彈簧中最常見的種類，截面為圓形，主為回彈、減震、提供推力。材質有琴鋼線(SWP)與不鏽鋼線(SUS304)，其耐熱與荷重程度不同，規格有兩端磨平與無磨平。頂出力量較小，壓縮量較大。通常運用在頂出銷、滑塊等頂出量(高度)較高的設計
荷重計算方式
荷重(N)=定數(N/mm)×壓縮量(mm)
此產品接受客製，不限數量，請填寫彈簧客製表單
規格數據
圓線彈簧客製化表單(Round Wire Spring Customized Form):請點擊
|
材質
Materials
|
顏色
Color
|
使用溫度(ºC)
Operating temperature (ºC)
|
定數設定表
Spring constant setting table
|
圓線彈簧公差表
Round Wire Spring Tolerance Table
|
||||
|
外徑範圍
Outer diameter range
|
定數(N/mm)
Spring constant
|
外徑
Outer diameter
|
自由長
Free length
|
|||||
| SWP |
本色
True Color
|
80 | 3~8 | 0.1 | ≦13 | >13 | ≦50 | ≧55 |
| 10~16 | 0.2 | +0/-0.5 | +0/-0.8 | ±1.5 | ±2.5 | |||
| 規格表\Specification Table |
|
品號
Product No.
|
外徑
Outside diameter
|
內徑
inside diameter
|
線徑
Wire Diameter
|
自由長
Free length
|
定數(N/mm)
Spring constant
|
最大壓縮量(mm)
Max compression
|
|---|---|---|---|---|---|---|
| AY03-05 | 3 | 2.68 | 0.16 | 5 | 0.1 | 3.75 |
| AY03-10 | 3 | 2.6 | 0.2 | 10 | 0.1 | 7.5 |
| AY03-15 | 3 | 2.54 | 0.23 | 15 | 0.1 | 11.25 |
| AY03-20 | 3 | 2.54 | 0.23 | 20 | 0.1 | 15 |
| AY03-25 | 3 | 2.5 | 0.25 | 25 | 0.1 | 18.75 |
| AY03-30 | 3 | 2.48 | 0.26 | 30 | 0.1 | 22.5 |
| AY04-05 | 4 | 3.6 | 0.2 | 5 | 0.1 | 3.75 |
| AY04-10 | 4 | 3.54 | 0.23 | 10 | 0.1 | 7.5 |
| AY04-15 | 4 | 3.54 | 0.23 | 15 | 0.1 | 11.25 |
| AY04-20 | 4 | 3.5 | 0.25 | 20 | 0.1 | 15 |
| AY04-25 | 4 | 3.42 | 0.29 | 25 | 0.1 | 18.75 |
| AY04-30 | 4 | 3.42 | 0.29 | 30 | 0.1 | 22.5 |
| AY04-35 | 4 | 3.36 | 0.32 | 35 | 0.1 | 26.25 |
| AY04-40 | 4 | 3.36 | 0.32 | 40 | 0.1 | 30 |
| AY05-10 | 5 | 4.5 | 0.25 | 10 | 0.1 | 7.5 |
| AY05-15 | 5 | 4.5 | 0.25 | 15 | 0.1 | 11.25 |
| AY05-20 | 5 | 4.4 | 0.3 | 20 | 0.1 | 15 |
| AY05-25 | 5 | 4.4 | 0.3 | 25 | 0.1 | 18.75 |
| AY05-30 | 5 | 4.3 | 0.35 | 30 | 0.1 | 22.5 |
| AY05-35 | 5 | 4.3 | 0.35 | 35 | 0.1 | 26.25 |
| AY05-40 | 5 | 4.24 | 0.38 | 40 | 0.1 | 30 |
| AY05-45 | 5 | 4.24 | 0.38 | 45 | 0.1 | 33.75 |
| AY05-50 | 5 | 4.24 | 0.38 | 50 | 0.1 | 37.5 |
| AY06-10 | 6 | 5.4 | 0.3 | 10 | 0.1 | 7.5 |
| AY06-15 | 6 | 5.36 | 0.32 | 15 | 0.1 | 11.25 |
| AY06-20 | 6 | 5.36 | 0.32 | 20 | 0.1 | 15 |
| AY06-25 | 6 | 5.3 | 0.35 | 25 | 0.1 | 18.75 |
| AY06-30 | 6 | 5.24 | 0.38 | 30 | 0.1 | 22.5 |
| AY06-35 | 6 | 5.24 | 0.38 | 35 | 0.1 | 26.25 |
| AY06-40 | 6 | 5.2 | 0.4 | 40 | 0.1 | 30 |
| AY06-45 | 6 | 5.2 | 0.4 | 45 | 0.1 | 33.75 |
| AY06-50 | 6 | 5.2 | 0.4 | 50 | 0.1 | 37.5 |
| AY06-55 | 6 | 5.1 | 0.45 | 55 | 0.1 | 41.25 |
| AY06-60 | 6 | 5.1 | 0.45 | 60 | 0.1 | 45 |
| AY06-65 | 6 | 5.1 | 0.45 | 65 | 0.1 | 48.75 |
| AY06-70 | 6 | 5.1 | 0.45 | 70 | 0.1 | 52.5 |
| AY08-10 | 8 | 7.3 | 0.35 | 10 | 0.1 | 7.5 |
| AY08-15 | 8 | 7.24 | 0.38 | 15 | 0.1 | 11.25 |
| AY08-20 | 8 | 7.2 | 0.4 | 20 | 0.1 | 15 |
| AY08-25 | 8 | 7.2 | 0.4 | 25 | 0.1 | 18.75 |
| AY08-30 | 8 | 7.1 | 0.45 | 30 | 0.1 | 22.5 |
| AY08-35 | 8 | 7.1 | 0.45 | 35 | 0.1 | 26.25 |
| AY08-40 | 8 | 7.1 | 0.45 | 40 | 0.1 | 30 |
| AY08-45 | 8 | 7.1 | 0.45 | 45 | 0.1 | 33.75 |
| AY08-50 | 8 | 7 | 0.5 | 50 | 0.1 | 37.5 |
| AY08-55 | 8 | 7 | 0.5 | 55 | 0.1 | 41.25 |
| AY08-60 | 8 | 7 | 0.5 | 60 | 0.1 | 45 |
| AY08-65 | 8 | 7 | 0.5 | 65 | 0.1 | 48.75 |
| AY08-70 | 8 | 7 | 0.5 | 70 | 0.1 | 52.5 |
| AY10-15 | 10 | 9 | 0.5 | 15 | 0.2 | 11.25 |
| AY10-20 | 10 | 8.9 | 0.55 | 20 | 0.2 | 15 |
| AY10-25 | 10 | 8.9 | 0.55 | 25 | 0.2 | 18.75 |
| AY10-30 | 10 | 8.8 | 0.6 | 30 | 0.2 | 22.5 |
| AY10-35 | 10 | 8.8 | 0.6 | 35 | 0.2 | 26.25 |
| AY10-40 | 10 | 8.7 | 0.65 | 40 | 0.2 | 30 |
| AY10-45 | 10 | 8.7 | 0.65 | 45 | 0.2 | 33.75 |
| AY10-50 | 10 | 8.7 | 0.65 | 50 | 0.2 | 37.5 |
| AY10-55 | 10 | 8.6 | 0.7 | 55 | 0.2 | 41.25 |
| AY10-60 | 10 | 8.6 | 0.7 | 60 | 0.2 | 45 |
| AY10-65 | 10 | 8.6 | 0.7 | 65 | 0.2 | 48.75 |
| AY10-70 | 10 | 8.6 | 0.7 | 70 | 0.2 | 52.5 |
| AY13-20 | 13 | 11.8 | 0.6 | 20 | 0.2 | 15 |
| AY13-25 | 13 | 11.7 | 0.65 | 25 | 0.2 | 18.75 |
| AY13-30 | 13 | 11.7 | 0.65 | 30 | 0.2 | 22.5 |
| AY13-35 | 13 | 11.6 | 0.7 | 35 | 0.2 | 26.25 |
| AY13-40 | 13 | 11.5 | 0.75 | 40 | 0.2 | 30 |
| AY13-45 | 13 | 11.5 | 0.75 | 45 | 0.2 | 33.75 |
| AY13-50 | 13 | 11.4 | 0.8 | 50 | 0.2 | 37.5 |
| AY13-55 | 13 | 11.4 | 0.8 | 55 | 0.2 | 41.25 |
| AY13-60 | 13 | 11.4 | 0.8 | 60 | 0.2 | 45 |
| AY13-65 | 13 | 11.3 | 0.85 | 65 | 0.2 | 48.75 |
| AY13-70 | 13 | 11.3 | 0.85 | 70 | 0.2 | 52.5 |
| AY16-20 | 16 | 14.7 | 0.65 | 20 | 0.2 | 15 |
| AY16-25 | 16 | 14.6 | 0.7 | 25 | 0.2 | 18.75 |
| AY16-30 | 16 | 14.5 | 0.75 | 30 | 0.2 | 22.5 |
| AY16-35 | 16 | 14.4 | 0.8 | 35 | 0.2 | 26.25 |
| AY16-40 | 16 | 14.3 | 0.85 | 40 | 0.2 | 30 |
| AY16-45 | 16 | 14.3 | 0.85 | 45 | 0.2 | 33.75 |
| AY16-50 | 16 | 14.2 | 0.9 | 50 | 0.2 | 37.5 |
| AY16-55 | 16 | 14.2 | 0.9 | 55 | 0.2 | 41.25 |
| AY16-60 | 16 | 14.2 | 0.9 | 60 | 0.2 | 45 |
| AY16-65 | 16 | 14.2 | 0.9 | 65 | 0.2 | 48.75 |
| AY16-70 | 16 | 14.2 | 0.9 | 70 | 0.2 | 52.5 |
