產品介紹
工程塑膠螺絲

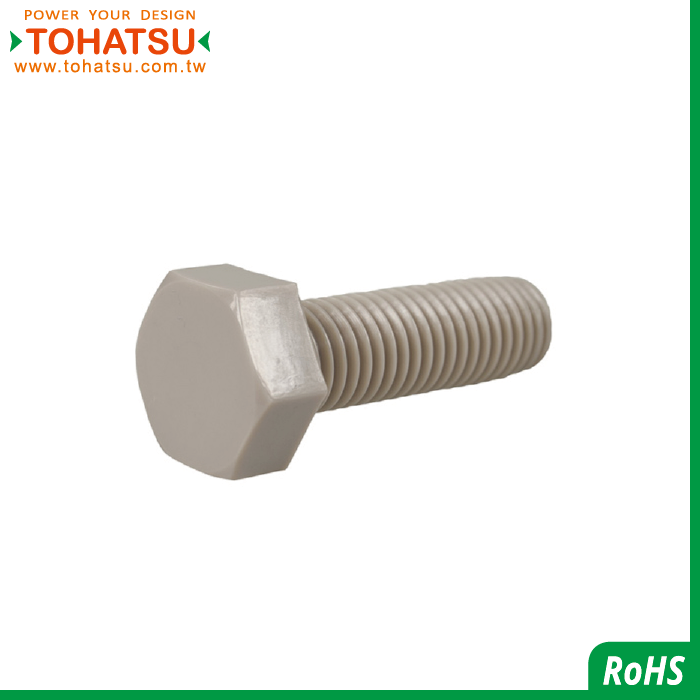

外六角塑膠螺栓(材質:PEEK)
PEEKHB
外六角螺絲主要用於薄壁零件上或受衝擊,振動或交變載荷的場合。預緊接觸面積大,可以用很大的預緊力
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
N0098-000040 | PEEKHB-M3X6 | PEEK | M3X0.5 | 6 | 全牙 |
N0098-000042 | PEEKHB-M4X6 | PEEK | M4X0.7 | 6 | 全牙 |
N0098-000055 | PEEKHB-M4X10 | PEEK | M4X0.7 | 10 | 全牙 |
N0098-000046 | PEEKHB-M4X15 | PEEK | M4X0.7 | 15 | 全牙 |
N0098-000085 | PEEKHB-M4X25 | PEEK | M4X0.7 | 25 | 全牙 |
N0098-000084 | PEEKHB-M4X30 | PEEK | M4X0.7 | 30 | 全牙 |
N0098-000045 | PEEKHB-M5X5 | PEEK | M5X0.8 | 5 | 全牙 |
N0098-000071 | PEEKHB-M5X8 | PEEK | M5X0.8 | 8 | 全牙 |
N0098-000082 | PEEKHB-M5X10 | PEEK | M5X0.8 | 10 | 全牙 |
N0098-000047 | PEEKHB-M5X12 | PEEK | M5X0.8 | 12 | 全牙 |
N0098-000075 | PEEKHB-M5X15 | PEEK | M5X0.8 | 15 | 全牙 |
N0098-000049 | PEEKHB-M5X20 | PEEK | M5X0.8 | 20 | 全牙 |
N0098-000051 | PEEKHB-M5X25 | PEEK | M5X0.8 | 25 | 全牙 |
N0098-000052 | PEEKHB-M5X30 | PEEK | M5X0.8 | 30 | 全牙 |
N0098-000043 | PEEKHB-M6X5 | PEEK | M6X1 | 5 | 全牙 |
N0098-000061 | PEEKHB-M6X7 | PEEK | M6X1 | 7 | 全牙 |
N0098-000067 | PEEKHB-M6X8 | PEEK | M6X1 | 8 | 全牙 |
N0098-000062 | PEEKHB-M6X10 | PEEK | M6X1 | 10 | 全牙 |
N0098-000066 | PEEKHB-M6X12 | PEEK | M6X1 | 12 | 全牙 |
N0098-000039 | PEEKHB-M6X15 | PEEK | M6X1 | 15 | 全牙 |
N0098-000056 | PEEKHB-M6X16 | PEEK | M6X1 | 16 | 全牙 |
N0098-000074 | PEEKHB-M6X20 | PEEK | M6X1 | 20 | 全牙 |
N0098-000076 | PEEKHB-M6X25 | PEEK | M6X1 | 25 | 全牙 |
N0098-000078 | PEEKHB-M6X30 | PEEK | M6X1 | 30 | 全牙 |
N0098-000068 | PEEKHB-M6X35 | PEEK | M6X1 | 35 | 全牙 |
N0098-000038 | PEEKHB-M6X40 | PEEK | M6X1 | 40 | 全牙 |
N0098-000070 | PEEKHB-M8X8 | PEEK | M8X1.25 | 8 | 全牙 |
N0098-000053 | PEEKHB-M8X10 | PEEK | M8X1.25 | 10 | 全牙 |
N0098-000044 | PEEKHB-M8X15 | PEEK | M8X1.25 | 15 | 全牙 |
N0098-000060 | PEEKHB-M8X16 | PEEK | M8X1.25 | 16 | 全牙 |
N0098-000069 | PEEKHB-M8X18 | PEEK | M8X1.25 | 18 | 全牙 |
N0098-000063 | PEEKHB-M8X20 | PEEK | M8X1.25 | 20 | 全牙 |
N0098-000072 | PEEKHB-M8X25 | PEEK | M8X1.25 | 25 | 全牙 |
N0098-000081 | PEEKHB-M8X28 | PEEK | M8X1.25 | 28 | 全牙 |
N0098-000077 | PEEKHB-M8X30 | PEEK | M8X1.25 | 30 | 全牙 |
N0098-000054 | PEEKHB-M8X35 | PEEK | M8X1.25 | 35 | 全牙 |
N0098-000057 | PEEKHB-M8X40 | PEEK | M8X1.25 | 40 | 全牙 |
N0098-000048 | PEEKHB-M8X45 | PEEK | M8X1.25 | 45 | 全牙 |
N0098-000058 | PEEKHB-M10X20 | PEEK | M10X1.5 | 20 | 全牙 |
N0098-000050 | PEEKHB-M10X25 | PEEK | M10X1.5 | 25 | 全牙 |
N0098-000073 | PEEKHB-M10X30 | PEEK | M10X1.5 | 30 | 全牙 |
N0098-000065 | PEEKHB-M10X35 | PEEK | M10X1.5 | 35 | 全牙 |
N0098-000083 | PEEKHB-M10X40 | PEEK | M10X1.5 | 40 | 全牙 |
N0098-000059 | PEEKHB-M12X15 | PEEK | M12X1.75 | 15 | 全牙 |
N0098-000079 | PEEKHB-M12X25 | PEEK | M12X1.75 | 25 | 全牙 |
N0098-000080 | PEEKHB-M12X30 | PEEK | M12X1.75 | 30 | 全牙 |
N0098-000064 | PEEKHB-M12X35 | PEEK | M12X1.75 | 35 | 全牙 |
N0098-000041 | PEEKHB-M12X40 | PEEK | M12X1.75 | 40 | 全牙 |
